Battery Management Systems CAN Protocol

SKU BB_043

Price on request

In stock

Send us the quantity and delivery location and we'll come back with pricing, usually the same working day.

Description

Protocols	DNP3
Usage/Application	For Data Conversion
Ports	4 Ports
Country of Origin	Made in India
Voltage	220V
Frequency	50 Hz
Battery Configuration	6 cells (3.7V, 2000mAh, 25C each)
Balancing Method	Passive (Resistor-based)
Operating Voltage	24V system
Output Voltage Range	18.5V to 25.2V
Communication Protocols	I2C, Bluetooth, CAN
CAN Baud Rate	500 kbps
Control Unit	Microcontroller-Based (Custom Firmware Support)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Test Load	24V / 21W Halogen Bulb
Lab Integration	Modular Interface, CAN-enabled for external equipment

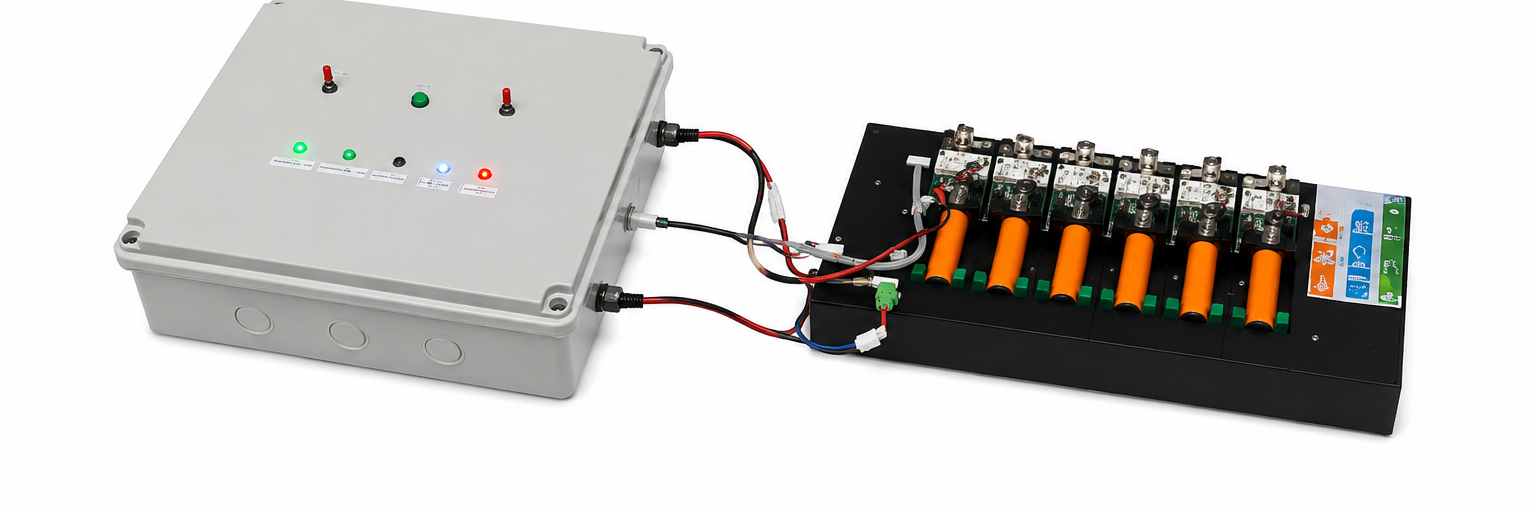

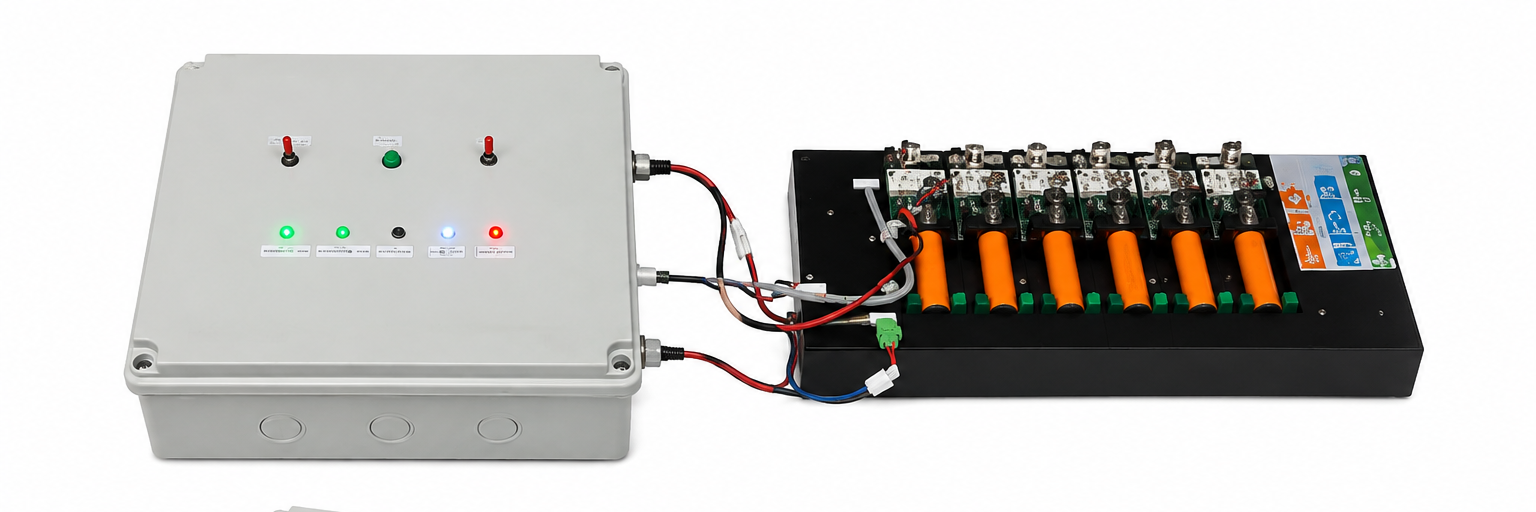

This Battery Management System (BMS) Trainer is specifically designed for academic and research applications, simulating a 6-cell lithium-ion battery pack typically used in electric vehicle platforms. Built with passive balancing, multi-protocol communication (CAN, I2C, Bluetooth), and advanced safety protections, the trainer offers an immersive learning experience on battery diagnostics, cell balancing, CAN-based communication, and embedded BMS logic.

Its modular and plug-and-play design allows seamless integration with lab setups, including chargers, controllers, and load banks, making it a powerful tool for training, experimentation, and performance monitoring.

Key Features:1
1. Real-Time Monitoring and Logging
2. Passive Cell Balancing
3. Robust Safety Mechanism
4. Modular & Plug-and-Play Design
5. Customizable Firmware
6. Advanced Diagnostics
