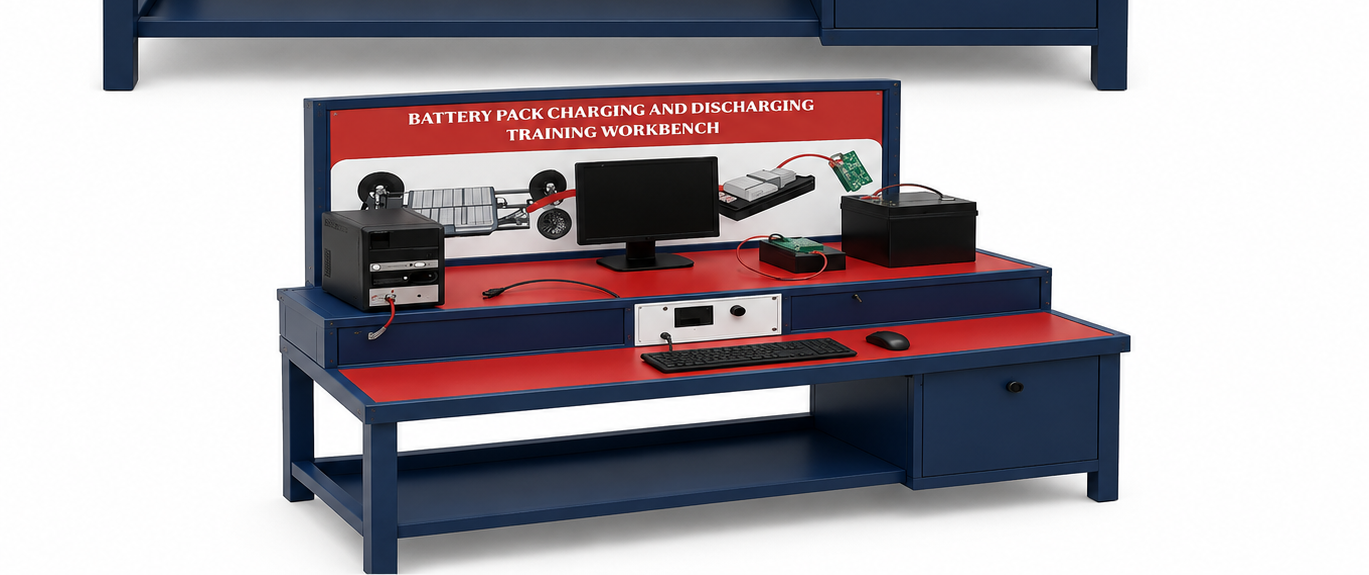

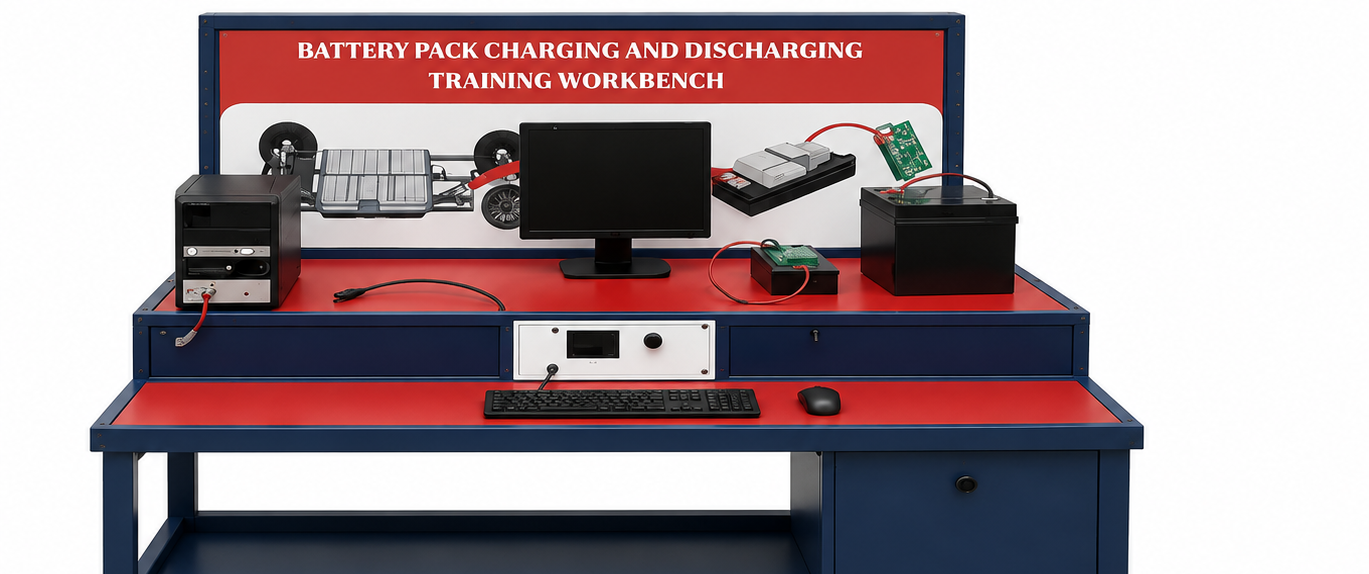

Battery Pack Testing & Aging Machine With Data Acquisition System Workbench

SKU BB_052

Price on request

In stock

Send us the quantity and delivery location and we'll come back with pricing, usually the same working day.

Description

Voltage	9V to 99V
Equipment type	Battery tester
System voltage	230V
Current rating	20A
Battery type	Lithium ion, Lead acid
Channel count	Single
Control software	PC software
Cooling	Air cooled
Data logging	PC storage
Power Supply	AC 220V +-10%, 50/60Hz
Country of Origin	Made in India
Supported Battery Types	Lead-acid & Lithium-ion Battery Packs
Basic Functions	Charging, Discharging, Auto-cycle, Data Logging
Maximum Cycle Index	16 Charge-Discharge Cycles
Operation Modes	Software-Controlled / Front Panel Operation
Battery Connection Interface	Heavy-duty test cables with clamps
Communication Port	LAN (Supports networked multi-device setup)
Data Acquisition	Real-time monitoring with monitor, wireless keyboard & mouse
Software Platform	Windows-based GUI with SQL Database for Data Storage
Safety Features	Reverse Polarity, Over-voltage, Over-current, Power Failure Data Protection
Data Export Options	Battery Barcode, Timestamp, Equipment Number, CSV/PDF formats

The Battery Pack Testing & Aging Machine with Data Acquisition System is a precision-engineered training and testing platform designed to simulate real-world charging and discharging conditions for various battery chemistries. It enables in-depth analysis of battery health, capacity, and lifecycle through automated aging cycles, making it ideal for training in EV maintenance, energy storage R&D, and battery quality control.

This system provides students, faculty, and engineers a hands-on tool to understand battery degradation patterns, functional testing procedures, and data-driven diagnostics using a dedicated software interface and real-time monitoring features.
