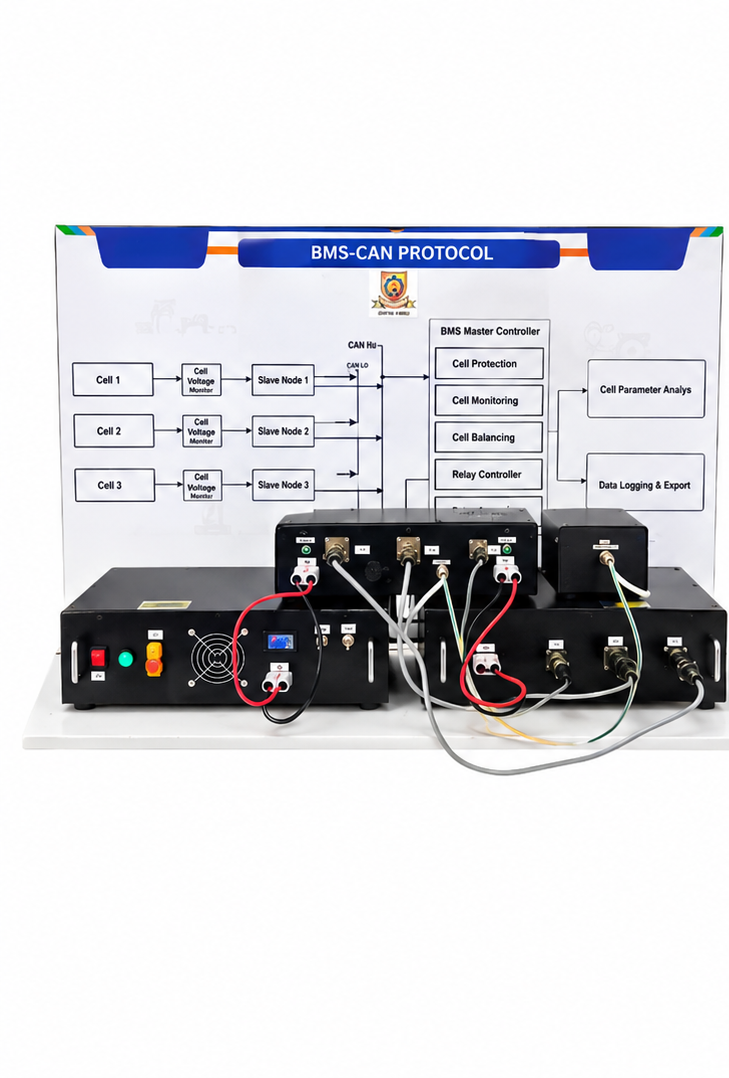

BMS CAN protocol & Analyzer

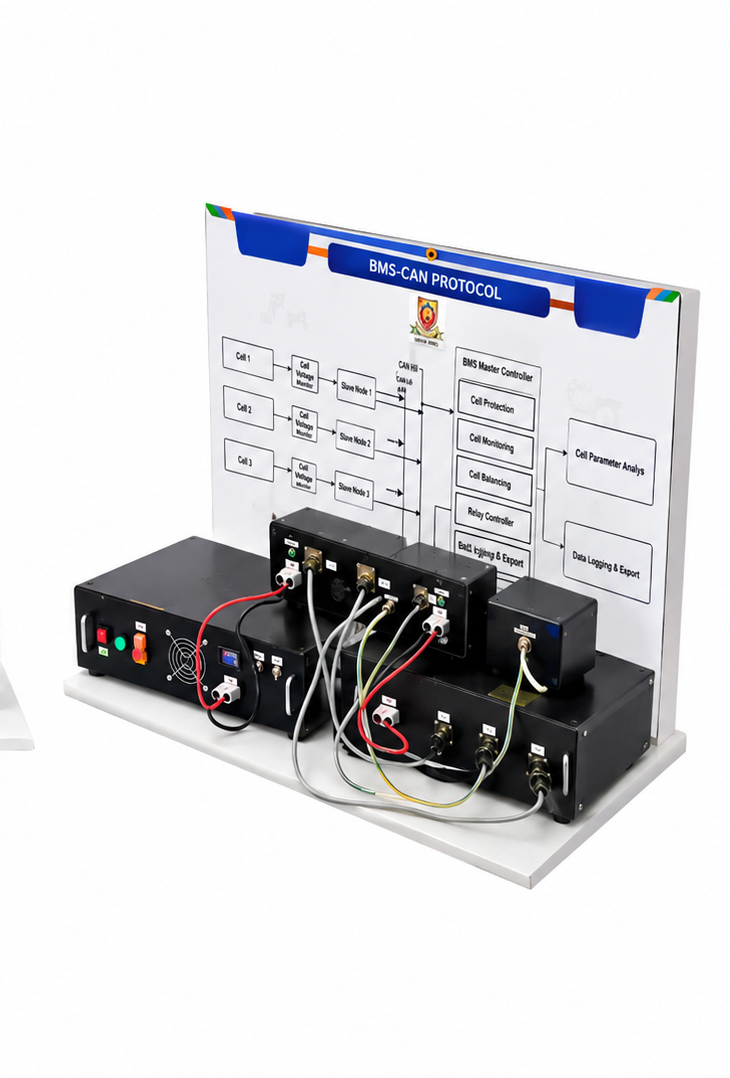

BMS CAN protocol & Analyzer - Image 2
,

BMS CAN protocol & Analyzer

SKU BB_041

Price on request
In stock
Request a quote

Send us the quantity and delivery location and we'll come back with pricing, usually the same working day.

Description

Equipment Type CAN PROTOCOL TESTING MACHINE
Series (S) 8S
Discipline Electrical, Automobile
Power Rating 48V DC
Control Type Computerized
Continuous Charge Current 20A
BMS Type Smart
Power Supply 230 V AC 1 Phase
Communication Protocol CAN
Automation Grade Semi Automatic
Application Polytechnic, Engineering College, Research Lab, Industrial Lab, QA Lab, Training Center
Waterproof No
About the BMS CAN ProtocolThe Battery Management System (BMS) CAN Protocol is a standardized communication protocol used to exchange data between a BMS and other vehicle control units (VCU, charger, motor controller, etc.) in electric vehicles. CAN (Controller Area Network) ensures reliable, real-time, and robust communication between different modules in the EV powertrain and energy management system.

This protocol is widely used in EV research, development, testing, and training laboratories to enable monitoring, control, and diagnostics of the battery system.

Key Features

  • Real-time, multi-node communication between BMS and vehicle subsystems.
  • Supports monitoring of voltage, current, temperature, SOC, SOH, and fault conditions.
  • Compatible with high-level control units such as VCU, chargers, and motor controllers.
  • Allows data logging, fault diagnostics, and protection signal exchange.
  • Standardized and scalable, supporting multiple battery modules and configurations.
  • Can be integrated with HIL setups, digital twins, and simulation platforms for testing.
  • Ensures robust, error-checked, and low-latency communication in EVs.
