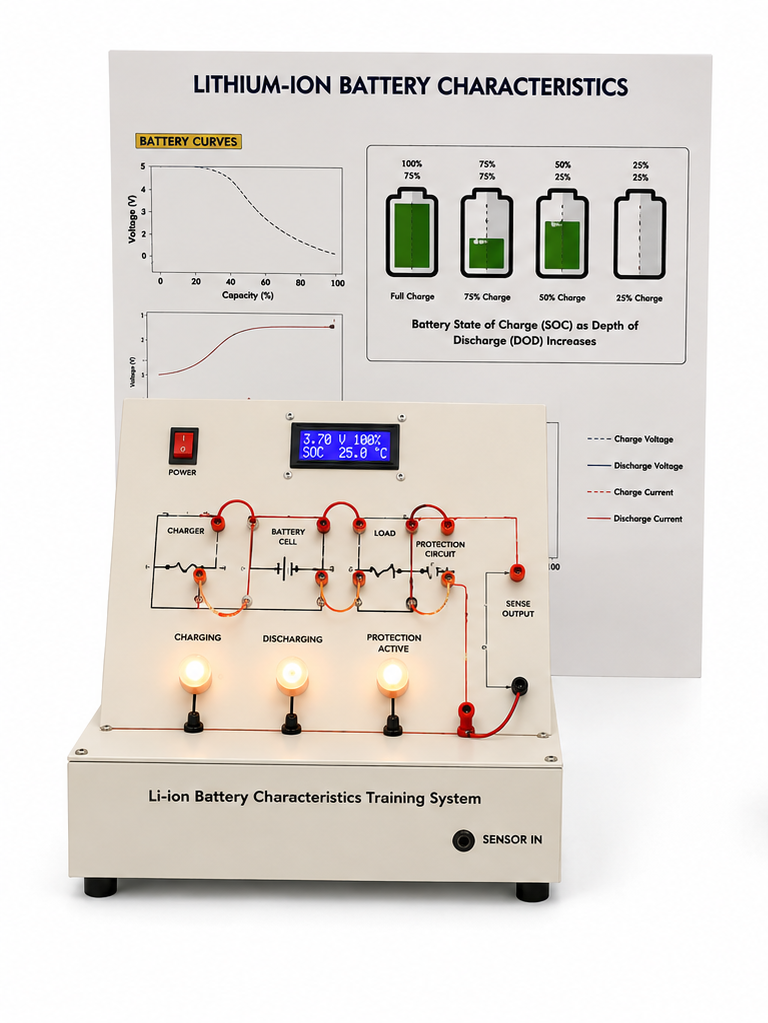

Li-ion Battery Characteristics Training System

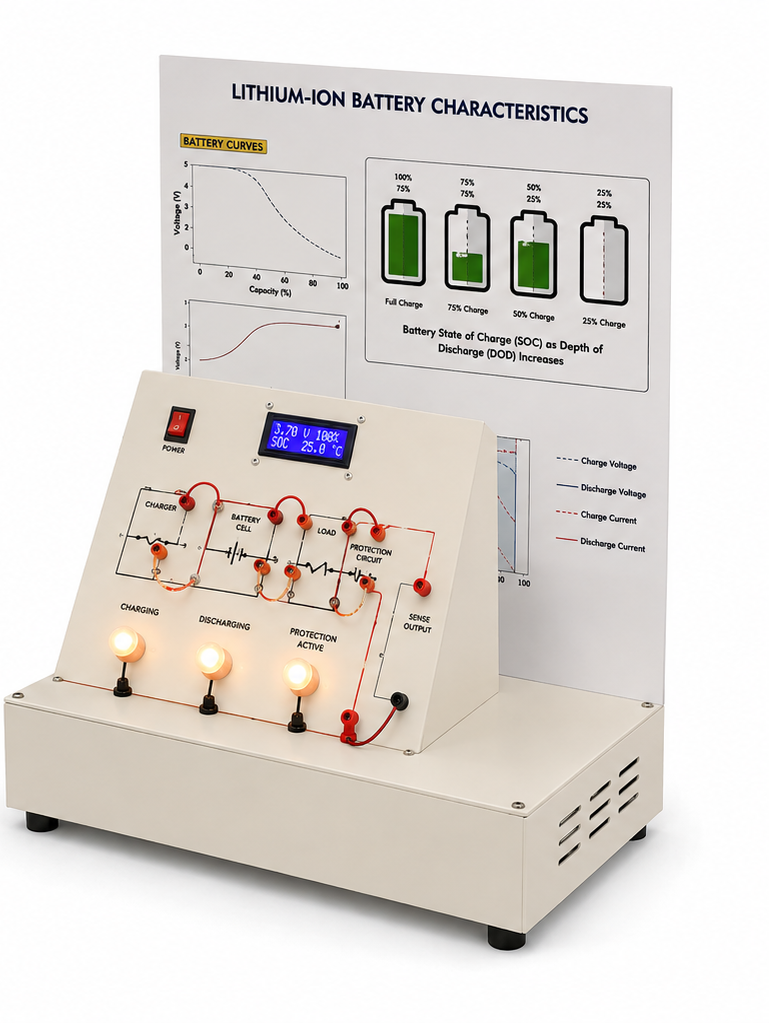

Li-ion Battery Characteristics Training System - Image 2
,

Li-ion Battery Characteristics Training System

SKU BB_042

Price on request
In stock
Request a quote

Send us the quantity and delivery location and we'll come back with pricing, usually the same working day.

Description

Branch Electrical
Equipment Type Trainer Kit
Training Level Diploma, Skill Dev, Engineering, ITI
Power Supply 230 V AC
Mount Type Table Top
Display Type LCD
No Of Experiments 6-10
Manual Included Yes
Nominal Voltage 3.2–3.7 V per cell
Rated Capacity 2 Ah – 50 Ah (training model dependent)
Input Power for Charging Adjustable DC Source (3.2–48 V DC typical)
Load Simulation Variable resistive / electronic load
Measurement Parameters Voltage, Current, Power, Capacity, SOC, Energy
The Li-ion Battery Characteristics Training System is a hands-on educational platform designed to teach learners the performance, charging/discharging behavior, and efficiency of lithium-ion batteries. It allows analysis of voltage, current, capacity, and state-of-charge (SOC) under various load conditions, making it ideal for EV training labs, energy storage education, and research & development.

Key Features

  • Demonstrates charging and discharging characteristics of Li-ion batteries.
  • Supports variable load conditions for performance testing.
  • Real-time measurement of voltage, current, power, capacity, and SOC.
  • Includes safety features: over-voltage, over-current, short-circuit, and thermal monitoring.
  • Lab-friendly design suitable for classroom and laboratory demonstrations.
  • Provides practical experience in energy efficiency and battery management.
  • Ideal for EV training, energy storage systems, and research labs.
